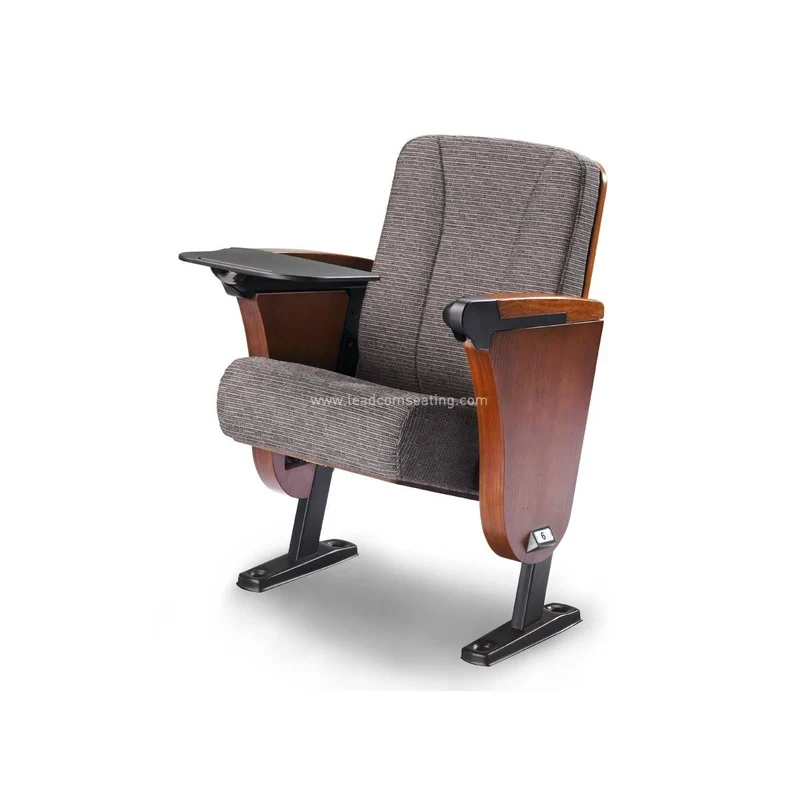

LOUISVILLE WOOD LS-10601WS

The elegance and graceful design of LOUISVILLE auditorium seat & lecture theater chair make this classic line an all-time good seller for auditoriums and schools. It features a superior comfortable cushion and multiple choices of outer back, seat and arm designed for your specific needs.

• OUTERBACK & SEAT PAN: Plywood surfaced with wood veneer
• BACK & SEAT CUSHION: Ergonomic cushion shaped with lumbar support
• TIP-UP SEAT MECHANISM: Spring and damping for smooth and quiet operation
• ARMREST: Available in ABS /solid wood armrest, optional ABS writing tablet
• LEG: Strong steel structural support

Please click to enlarge the image

DESCRIPTION	MM	INCH
C/C (armrest center to center)	550/560	21.7/22
Inner seat depth	440	17.3
Armrest to rear back depth	620	24.4
Overall depth with tablet open	815	32
Overall depth with tablet closed	680	26.8
Floor-to-seat height	460	18.1
Floor-to-armrest height	680	26.8
Floor-to-tablet height	710	28
Overall back height	880	34.6
