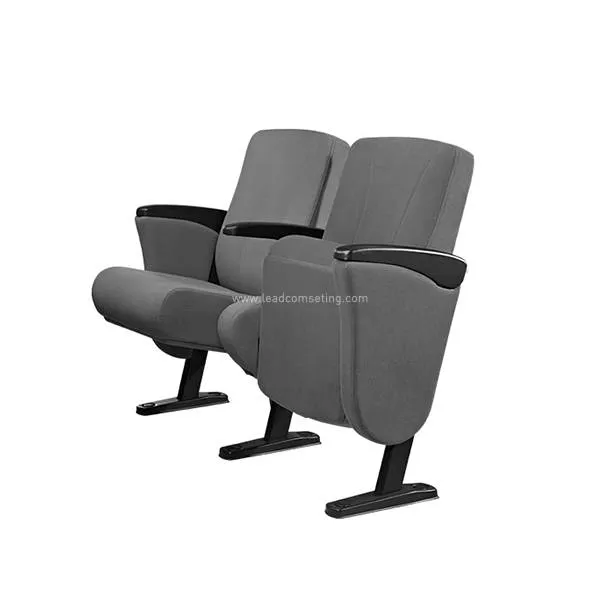

LOUISVILLE UPHOLSTERY LS-10601

The elegance and graceful design of LOUISVILLE makes this classic line an all-time good seller for auditoriums and churches. It features superior comfortable cushion and multiple choices of outer back, seat and arm designed for your specific needs.

• OUTERBACK: Fully upholstered
• BACK & SEAT CUSHION: Ergonomic back cushion shaped with lumbar support
• SEAT PAN: Fully upholstered
• TIP-UP SEAT MECHANISM: Counterweight for long-lasting operation
• ARMREST: Available in ABS /solid wooden armrest, ABS writing tablet available
• LEG: Strong steel structural support

Please click to enlarge the image

Description	MM	INCH
C/C (armrest center to center)	510/535/560	20/21/22
Overall back height	875	34.5
Arm width	64	2.5
Armrest to rear back depth	467	18.4
Floor to seat height	460	18.1
Floor to armrest height	640	25.2
Minimum row spacing	850	33.5
Recommended row spacing	900	35.4
