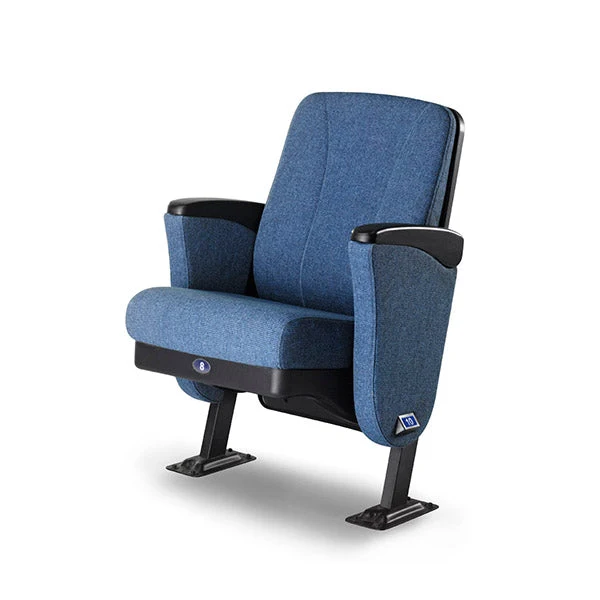

LOUISVILLE PLASTIC LS-10601P

The elegance and graceful design of LOUISVILLE makes this classic line an all-time good seller for auditoriums and churches. It features superior comfortable cushion and multiple choices of outerback, seat and arm designed for your specific needs.

• OUTERBACK: Injection molded polypropylene
• BACK & SEAT CUSHION: Ergonomic cushion shaped with lumbar support
• SEAT PAN: Injection molded polypropylene
• TIP-UP SEAT MECHANISM: Counterweight for long-lasting operation
• ARMREST: PP armrest, optional with ABS writing tablet
• LEG: Strong steel structural support

Please click to enlarge the image

Description	MM	INCH
C/C (armrest center to center)	510/535/560	20/21/22
Overall back height	876	34.5
Arm width	64	2.5
Armrest to rear back depth	469	18.6
Floor to seat height	460	18.1
Floor to armrest height	640	25.2
Minimum row spacing	850	33.5
Recommended row spacing	900	35.4
